4 Building a small application

4.1 Introduction

In this sections a small medical expert system is build. It uses three subjects: symptoms, illnesses and treatments. Three sentences define the way these subjects relate to each other. When the application is ready it should have this functionality:

- given a number of symptoms, what are the associated illnesses?
- given a number of  illnesses, what are the associated treatments
?

This application is the first of the tutorial that comes with the software. If you download the software you can build the application live.
Note: In order to prevent name mangling, all subjects that are defined in the tutorial start with a  T.


4.2 Contents logic

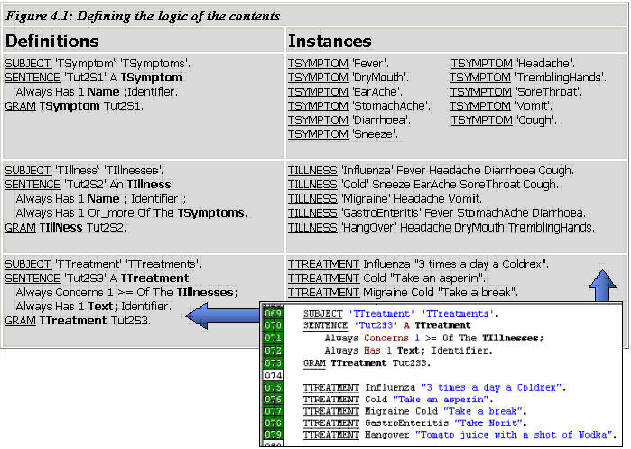

Figure 4.1 gives an overview of the contents of the application. First a new subject is added to the language that is called 'Symptom'. Next a sentence is added that says that every symptom has a name. Because there is only one sentence associated with a symptom, the grammar of symptoms is quit trivial. Parsing is done in the parser (see figure 3.5) by selecting the utterance and pressing CTRL+I. After parsing these three utterances, one can add instances of symptoms. In this example, adding symptoms also is done by parsing utterances (in stead of using a generated dialog).

The next step is to connect symptoms to illnesses. For that reason the subject illness is defined. Sentence Tut2S2  prescribes that an illness has a name (like 'cold') and that it is connected to one or more existing symptoms (like sneeze). After parsing the syntax, instances of illnesses can be added. In a similar fashion we define 'treatments' and connect these to illnesses.
Now, the small application is defined and we can step to the presentation of its contents.


4.3 Presentation logic

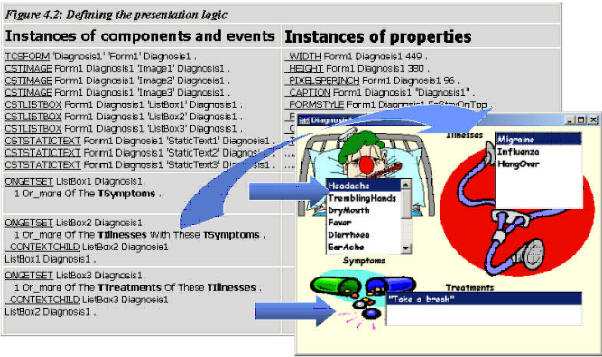

Figure 4.2 gives an overview of the elements needed in order to present the contents of the application. First, ten components are defined, a form, three images, three list boxes and three static text components. Because there are sentences that define components, adding components to the language is done in much the same way as adding symptoms or illnesses. Basically, there is no difference between these utterances:

    Utterance 1  CSTLISTBOX   Form1 Diagnosis1 'ListBox1' Diagnosis1.
    Utterance 2  HEIGHT            ListBox1 Diagnosis1 200.
    Utterance 3  TSYMPTOM    'Cough'
    Utterance 4  TILLNESS        'Cold' Sneeze EarAche SoreThroat Cough .

The only difference between a list box and a symptom is that the first one has a built-in visual representation.
Note: normally you will not use the parser to design presentation forms but rather the designer. See figure 3.4.

After creating the components, properties are parsed. These properties define for example the position of the component on the form (Width, Height, Left, Top, etc.).
The next step is to fill the list boxes with proper information. For that purpose, three 'OnGetSet' events are defined. Such an event informs the system that it should use the associated noun phrase to get the information. For ListBox1 the system retrieves 'The Symptoms'. Because we said '1 Or_more Of The Symptoms' it will select at least one symptom as default. For ListBox2 the noun phrase contains a 'walk' through the semantic network. The system is instructed to retrieve all illnesses that are connected to these illnesses. However, without additional information the system can not know what is meant by 'these'. For that reason we say that ListBox2 is the context child of ListBox1. The result in ListBox2 will be dependent on the choice made in ListBox1. In a similar fashion the set of treatments in ListBox3 is connected to the choice made in ListBox2.

Now, the application is ready. The next question is: how does the system process new information? CommunSENS is aware of its world and will always give the most complete view. For example, if you add a new symptom it automatically updates the set in ListBox1. The same will happen if you delete a symptom.
As mentioned before, there is no fundamental difference between a symptom, a form, a component, a property or an event. For that reason you can add and delete all these kind of symbols at run time too. Your application stays working in the state you want it to. This is what is meant by 'fully scalable'.

The basic configuration of the knowledge engine CommunSENS contains about twenty presentation forms like the parser and the designer. The architecture of all these forms is much the same as the form Diagnosis1. Basically, each form consists of a number of components that contain symbol sets which are connected by context. The result is a flow of symbols that stream through the forms. For that reason 'OnGetSet' events are not limited to visual components but also apply to menu items, buttons, etc.
