7 Notes

7.1 Introduction

This notes section contains some detailed information about

- the semantic network CHI2 (7.2);
- the language Fonal (7.3)
- the user interface (7.4)
- client-server architecture (7.5).


7.2 Detailed example of the semantic network CHI2

The semantic network contains 3 binary relations:

Added to these three relations is a characteristic function which deals with production . It signals whether or not rhe right member of the ordered pair has been created as a result of the relation.

As in double bookkeeping, every relation is stored two sided. Starting with an arbitrary symbol, this double bookkeeping makes it possible, to reach any other stored symbol in at most 4 steps. By this feature the database can be used as a (associative) semantic network.

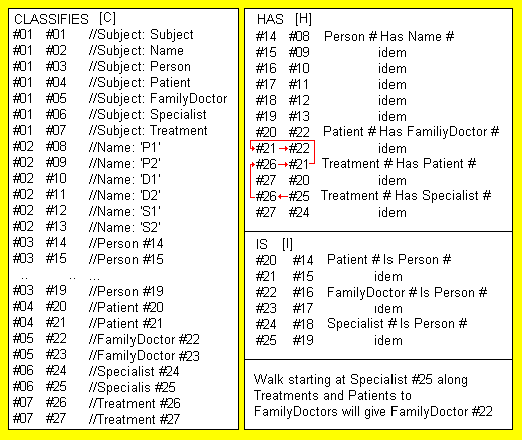

Instead of showing the formulas, an example is given. Figure 7.1 sketches a situation where a family doctor has referred a patient to a specialist for treatment. The (partial) image of the situation is stored in three tables each containing the relevant ordered pairs. The symbol numbers are choosen arbitrairy.

Figure 7.1: Basic tables

C-table: Classifies
The first row contains the pair #01 #01. This may be read as #01 classifies #01. This means that there is "something", namely symbol #01, that classifies itself. This symbol is the class of classes. The word "class" can be exchanged for its linguistic synonym "subject". Symbol #01 then comes to represent the subject: subject.
Next, other subjects are classified: the subject: names (#01 #02), the subject: persons (#01 #03), etc. Then come actual instances of names, persons, patients, etc. The row #04 #20 may be read as symbol #04 classifies symbol #20. When one knows that #04 is the class of patients this row can also be read as: Patient #20.

H-table: Has
The first line #14 #08 is read as symbol #14 has symbol #08. When one refers to the C-table this can be read as person #14 has name #08. After substituting the characters from #08 ('P1') this results in the statement person #14 has name 'P1'.  If one agrees on the rule that an unquoted name refers to the symbol with that name one can directly recognize symbol #14 by the statement person: P1.

I-table: Is
This table may also be termed the specialization/generalization table. The first row in the I-table contains the pair #20 #14 which can be read as patient #20 is person #14.  You are probably thinking, if one symbol is the same as the other then why must they be defined separately? The answer is that what applies to the one does not necessarily have to apply to the other. Take, for example, the statement Peter is a quick walker but a slow student. "Quick" and "slow" are opposites and using them together creates an antithesis. The person: Peter cannot be both quick and slow. If "quick" is used in terms of his capacity as a walker (a separate symbol) and "slow" in terms of his capacity as a student (another separate symbol) then the antithesis ceases to exist. As a consequence any symbol in the image is classified by one and only one subject
.

Walks
It is quite possible to make a walk through the tables. Figure
7.1 illustrates a walk through the H-table (follow the red arrows). Note that the walk enters the table both at the left and the right side.  For each of the relations there are two words that determine the direction of the walk. Moreover, every walk can  start from two sides. The next table lists the twelve possibilities in which In is the set of symbols to start with and Out is the resulting set. The last two walks are combinations. All walks are incorporated in the language by means of prepositional phrases.

Relation

Type

Walk description

Example

Result

Classify

1

In Classifying Out

Subject: Patient Classifying Symbols

{#20, #21}

2

Out Classifying In

Subject Classifying Symbol #20

{#04}

3

In Classified_by Out

Symbol #20 Classified_by Subject

{#04}

4

Out Classified_by In

Symbols Classified_by Subject: Patient

{#20,#21}

Has

5

In With Out

Patient #20 With FamilyDoctor

{#22}

6

Out With In

Patients With FamilyDoctor #22

{#20,#21}

7

In Of Out

FamilyDoctor #22 Of Patients

{#20,#21}

8

Out Of In

FamilyDoctor Of Patient #20

{#22}

Is

9

In ThereforeBeing Out

Patient #20 ThereforeBeing Person

{#14}

10

Out ThereforeBeing In

Patient TherforeBeing Person #14

{#20}

11

In AlsoBeing Out

Person #14 AlsoBeing Patient

{#20}

12

Out AlsoBeing In

Person AlsoBeing Patient #20

{#14}



In Being Out (9+11)

Person #14 Being Patient

{#20}



Out Being In (10+12)

Person Being Patient #20

{#14}

Table 7.1: Typology of walks

Statistics (21-5-2004)
The semantic network that comes with the software contains among other things the book about the language, the book about the user interface and the interface itself. With about 150 thousand symbols and 630 thousand ordered pairs the image was shaped. On an average each symbol is connected to a 4.1 other symbols. 681 subjects were used, each classifying about  221 symbols (average).

Relation

Ordered pairs

Number of different symbols

Left

Right

C-table

150716

681

150716

H-table

469557

144286

142229

I-table

7693

7083

7217

Table 7.2 Statistics of the basic image that comes with the software

These numbers may look impressive but compared to the human brain it is not. In the brain one finds billions of neurons (say symbols) and billions and billions of axons that connect the neurons. In this respect CHI2 has a modest size.

Scalability
The number of rows in each table does not have a theoretical minimum or maximum. However practically there is a limit to the size of the symbol domain. On a 32 bit computer the size of the domain is 230.symbols (a bit more than a billion). The two missing bits are reserved for signalling the position in a connection (left or right member) and the production of the connection.


7.3 The language Fonal

With respect to the image of the world, the purpose of language is three fold
    To prescribe the contents of the image
    To express how one should navigate through the image
    To express how one should execute orderly activities on the image (procedures).

In this paragraph we will first discuss some functional elements of the communication cycle (parsing, recognizing, naming, phrasing). Second, a description is given of the language, its constituent parts and its ability to define itself. It should be noted that functionality and constituent parts are closely knit. For example, in order to parse, ex ante sentences have to exist; in order for sentences to exist one has to parse. For that reason the order in which the subjects are discussed is quite arbitrary.

7.3.1 Functional parts

Sentences (ex ante) and parsing
A sentence is an utterance that prescribes which ordered pairs of symbols must be part of the image. If certain pairs are missing the state of the image is false. Take for example the following sentence and three instances of a patient:

    A Patient Always Is A Person

    C(Patient, #20)   C(Person, #14)    I (#20,#14)

C(Patient, #21)   C(Person, #15)    I (#21,#15)

C(Patient, #50)

For patients #20 and #21 the sentence is true. For both symbols we find in the image an ordered pair in which the appropriate connection between a patient symbol and a person symbol is made (the data come from figure 7.1). For patient #50 such a connection lacks. Therefore the logical state of the image is false. Parsing can be considered as a process in which connections are added / deleted without violating the truth of the image as defined by the sentences.
Sentences with the same main subject are grouped by a grammar. The parser will apply the sentences in the order in which they are grouped. If a sentence is productive (see below) the parser recursively continues with applying the sentences of the grammar of the right subject.

Sentences and naming / recognizing
How things are named is governed by naming rules. If one says Hello John one does not greet the name 'John' but one greets the person that listens to that name. In CommunSENS naming rules are associated with
ex ante sentences. By specifying that a certain subject acts as a name giver, this information is used whenever a symbol needs a name. To one type of symbol, more than one name giver can be assigned. Moreover name giving can be recursive. The subjects name, text and number are name givers by default. Encountering one of these subjects will stop the recursion. Their default use is overruled if other name giving sentences have been specified. The next four sentences give an example.

    A Person Always Has A FirstName; FirstNamegiver.
    A Person Always Has A FamilyName; SecondNamegiver.
    A FirstName Always Is A Name.
    A FamilyName Always Is A Name.

The process of naming a symbol boils down to the assembly of strings that are retrieved from the database in an order that is dictated by the relevant (nested) sentences.

The process of recognizing works the other way around. Starting from symbols representing known strings the sentences are used from right to left (e.g. from name to first name; from first name to person). If there is more than one name giver, the resulting sets are intersected. If the final set is a singleton then there is unique recognition. If the final set contains more than one symbol then there is homonym recognition.

If a string of characters is offered to the parser, first a lexical analyses is performed to determine which names, texts or numbers the string contains. The actual recognition of the symbols that are referenced by the string is done during parsing. After all, it is only during the parse process that it is possible to retrieve the appropriate name giving sentences.

Sentences and identification
Suppose there are 100 different persons in the database with the name 'John'. Still there is only one symbol that can represents that name. The question is: how  can one decide whether or not different symbols represent different things? The answer can be found in two principles proposed by the German philosopher Leibniz:
    - the principle of equality of what can not be distinguished;
    - the principle of not to distinguish of what is equal.
Loosely translated one can say that if symbol X has the same attributes as symbol Y, both symbols represent the same. Therefore one of them can be omitted. These principles are automatically applied in CommunSENS to minimize redundancy.
However they also raise a problem when a symbol is updated. Because the updated version is not the same as the original one the update action results in two symbols. The problem is solved by specifying whether or not certain attributes identify a symbol. Such a specification can be incorporated in the sentence that prescribes the attribute.

    A Person Always Has A FirstName; FirstNamegiver Identifier.
    A Person Always Has A FamilyName; SecondNamegiver Identifier.
    A Person Always Has A Salary.

In this example only the first name and the family name identify the person. Updating the salary attribute will not result in a different person. Symbols that are created by identifying sentences are called start symbols. Symbols that are created by non-identifying sentences follow the standard equality principles.

Sentences and production
In creating an ordered pair the question arises: does the right member of the connection ha
ve to exist or may it be created during the creation of the connection. Whether or not a production is allowed can be expressed by the sentence that prescribes the connection. In particular the determiner phrase (DP) at the right side of the verb determines the production behaviour of the sentence. If the DP contains the word 'of' the resulting pair contains an existing right member; if it is omitted the right member is created. Two examples:

    No production:    A Child Always Has 1 Of The Mothers.
    Production:         A Person Always Has 1 FirstName.

In most cases, practical considerations determine whether or not to formulate a sentence as productive or non-productive .
If the right member of a connection must exist it is called a terminal symbol. If the right member may be created it is called a non-terminal symbol.

Sentences and phrasing
Phrasing is the process of putting symbolic information into words. It is the reverse of parsing. Starting with a symbol, all
ex ante sentences of the grammar of the subject that classifies the symbol are retrieved. In the database, the connected symbols are fetched. If the connection is productive, phrasing continues recursively. If the connection is non-productive the name of the symbol is retrieved and added to the output string.

7.3.2 Constituent parts and self definition

Fonal has been defined, loosely based on the language universals proposed by the linguist N. Chomsky (for an introduction see: Fromkin Victoria, Robert Rodman, An Introduction to Language. New York 1986). The definition files that accompany the software show a complete overview of the language. Therefore, at this place a summary is presented in which the main structure is sketched (see table 7.3) . Italic text indicates that the category is directly recursive (e.g. InstructionList Has InstructionList). All other phrases and the expression are indirectly recursive (e.g. NP of PP of NP). Syntactic categories in bold, can use the elements of the last row. An underscored category indicates a terminal symbol.

Grammar

Procedures

Sentence (S)

Instruction lists (IL)

Noun phrase (NP)

Verb phrase(VP)

Expression Expression phrase (EP)
Adjective phrase (AP) Default phrase (DEFP) Determiner phrase (DP) Prepositional phrase (PP) Subject (noun) Proper name phrase (PNP) Verb quantor Verb NP NP
Adjective Quantor phrase (QP) Preposition NP
Numbers, variables, operators, expressions, expression phrases, etc.
Table 7.3: Language universals

The language universals make it possible to define Fonal by itself. Table 7.4 gives a mini language that contains all elements for self definition. If the verb is bold the sentence prescribes a non terminal connection otherwise a terminal connection.

Utterance

Start subject

Description

1

SENTENCE

Sentence Has NounPhrase

2

SENTENCE

Sentence Has VerbPhrase

3

SENTENCE

NounPhrase Has Subject

4

SENTENCE

VerbPhrase Has Verb

5

SENTENCE

VerbPhrase Has NounPhrase

6

SENTENCE

Subject Has Name

7

SENTENCE

Verb Has Name.

8

SUBJECT

'Subject'.

9

SUBJECT

'Sentence'.

10

SUBJECT

'NounPhrase'.

11

SUBJECT

'VerbPhrase'.

12

SUBJECT

'Verb'.

13

SUBJECT

'Name'.

14

SUBJECT

'VerbPhrase'.

15

VERB

'Has'.

Table 7.4 Mini language

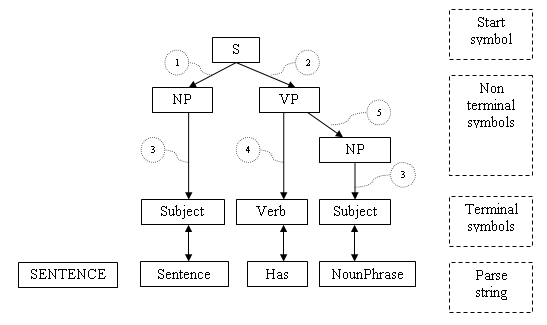

Figure 7.2 shows the parse tree that is created while parsing the first utterance of the mini language. The numbers in the balloons indicate the utterance that is applied in order to create the connection. The process starts with the parse string. This string begins with the subject "SENTENCE".  After the start subject is recognized, all relevant sentences are retrieved from the database to be applied to the string. In this case there are two relevant sentences that define a sentence: sentence 1 and 2. Note that sentence 1 is the very same utterance that is parsed. This is meant by "self definition of the language".
The basic image of the language is holistic. One can not remove parts of it without destroying the image. If one removes sentence 1 from the database there is no way to get it back because during the parse process it will need itself.



Figure 7.2: Holistic parse tree

Why does one need self definition?  The answer is: if language L has a set of syntactic rules R with a subset of meta rules M, one only has to formulate the logic for parsing, phrasing, etc. for M in order to apply them to R. If M is not a subset of R, there are 2 levels for which to formulate the logic. Moreover we should additionally define a set of meta meta rules to define the meta rules. This process will never stop unless there is a set of (meta .... meta) rules that defines itself.
An other advantage of self definition is that the storage structure remains the same. The following two sentences will both add similar ordered pairs to the H-table of the database

    A Sentence Always Has A NounPhrase
    A Child Always Has A Mother

The fact that the first pair expresses the relation between syntactic categories whilst the second expresses the relation between two human beings does not matter.

7.3.3 Symbols with predefined behaviour

Subject   Remarks
Determiners A, The, This
Draw function   1 of the. Governs production.
Flow words   If, Then, Else, While, ....
Instruction types Nested, Successive
Interpunction types   Opening, Closing
Operator priority   P1, P2, ... P8
Operator reach  Unary, Binary
Operator types   Numerical, Logical, Relational, ...
Operators   +, -, *, ... Overloading possible
Prepositions   With, Of, .. Determine walks through tables
Quantor phrase types Individual, Collective
System parameters   Identifier, Default, ..
Tree position   Left, Right
Verb quantor   Always, Sometimes
Verbs   Is, Has. Determine number of tables.
Walk types   Evaluating, Collecting.
Table 7.5 Symbols with predefined behaviour




7.4 User interface

CommunSENS contains a complete, logical definition of the user interface in Fonal. This definition stands apart from the actual implementation of the interface on an computer or operating system. The visual structure of the user interface is based on the taxonomy of Borland's Visual Component Library which in turn rests on MS Windows. Two kinds of properties are distinguished. The first category deals with properties that determine the visual aspects of components as seen by the user. The second category is specifically designed for use with Fonal. These properties, called set events, deal with the way sets are retrieved, updated, changed etc. The next table shows the most important events that can be used to conduct the behaviour of components.

Set events Generated at Description
OnGetSet Server Executes a noun phrase that retrieves the symbol set. F.e. 'All patients'
OnGetChildren Server Executes a noun phrase that retrieves the node children for tree-like components
OnGetParents Server Executes a noun phrase that retrieves the node parents for tree-like components
OnSetChanged Server Executes a free expression when the set changes (symbols added or deleted)
OnSelChange Client Executes a free expression when the selection changes. Moreover, it automatically updates the symbol stream for context sensitive components
OnGetName Server Executes a procedure to get the name of a symbol
OnGetColumnName Server Executes a procedure to get column information
OnGetState Server Executes a free expression to get the perfect / imperfect state of a symbol
OnSelUpdate Server Executes a free expression when a selected symbol has been updated
OnCommit Server Executes 1 or more noun phrases to collect symbols that are affected by a committed information change
OnClick Client Executes a free expression
OnDblClick Client Executes a free expression
Table 7.6 Most important events

Table 7.7 shows which symbols of CommunSENS are specifically addressed in the DLL.

Subjects: Components

CsTCheckListBox CsTComboBox CsTControlBar
CsTForm CsTImageList CsTListView
CsTMenuItem CsTStatusBar CsTStringGrid
CsTTabSheet CsTToolBar CsTTreeView
TComponent TControl TStatusBar
TWinControl

Subjects: Non Components

TBrush TCollectionItem TControlScrollBar
TFont TIconOptions TListColumn
TMonthCalColors TPen TSizeConstraints
TStatusPanel

Subjects: Properties

_ActiveControl _ActivePage _Align
_AllocBy _BorderStyle _Caption
_Chart _ChildIndex _Color
_Columns _CommonAVI _ConstantName
_ConstantSet _ContextChild _Date
_DateTime _Empty _Enabled
_Font _Height _Hint
_Image _Left _NSeries
_OleProps _PageIndex _Panels
_Position _SaveUserSelection _ShadowImage
_Text _TextHeight _Time
_Top _ViewStyle _Visible
_Width

Subjects: Events

OnActivePage OnCheckChange
OnClickSS OnCommit OnCreateSS
OnDblClickSS OnDestroySS OnDragDropSS
OnExecuted OnGetChildren OnGetColumnName
OnGetName OnGetParents OnGetSet
OnGetState OnSelChange OnSelChanged
OnSelDefault OnSelUpdated OnSetChanged
OnTextChange OnTextChanged OnTextSelChanged
OnTimerEvent

Subjects Other

AbstractConnection ComponentMethod ContextParent
DesignParent Enumeration FileImageIndex
HeightValue Image ImageLink
LeftValue NTList TList
TopValue UserSelection UserSetting
WidthValue ImageListIndex OverlayImageIndex

Subjects: Enumerations

Category  Component, NonComponents
ImageLinkType Selected, UnSelected
TColor clRed, clBlack, clGreen, clBlue
TFontStyle fsBold, fsItalic, fsUnderline
TFormBorderStyle    bsSizeToolWin, bsSizeable

Specific Forms

FBuilder FDefault FDesign
FForm FImageList FParser
FProject

Specific Components

Images16 FImageList ListView1 FSetting ListView2 FDesign
ListView2 FSetting ListView3 FSetting ListView4 FSetting
Memo1 FMessages
